User Guide
Thank you for buying our product(s)!
Start your kien experience by downloading the app. The app will help you in setting up your speaker(s). Still in need for guidance? Click one of the product tabs below.
Start your kien experience by downloading the app. The app will help you in setting up your speaker(s). Still in need for guidance? Click one of the product tabs below.
app download
You can find the kien app in the iOS App Store or Google Playstore by searching for ‘kien’. Or simply click one of the links or scan one of the QR codes here on the right.
First time pairing




1. First run? Plug the charger and wait for the SAT to power on automatically.
2. Shortly after the blinking white the LED indicates the battery level with green/yellow/red.
3. Is the LED blinking pink? Press the Mode button (second button from the top) once and wait for the LED to blink blue.
2. Shortly after the blinking white the LED indicates the battery level with green/yellow/red.
3. Is the LED blinking pink? Press the Mode button (second button from the top) once and wait for the LED to blink blue.
(Connect &) Play



A Leader SAT will automatically go into Standby Mode within 15 minutes of inactivity. See chapter
‘Standby Mode’.
Controls & Inputs

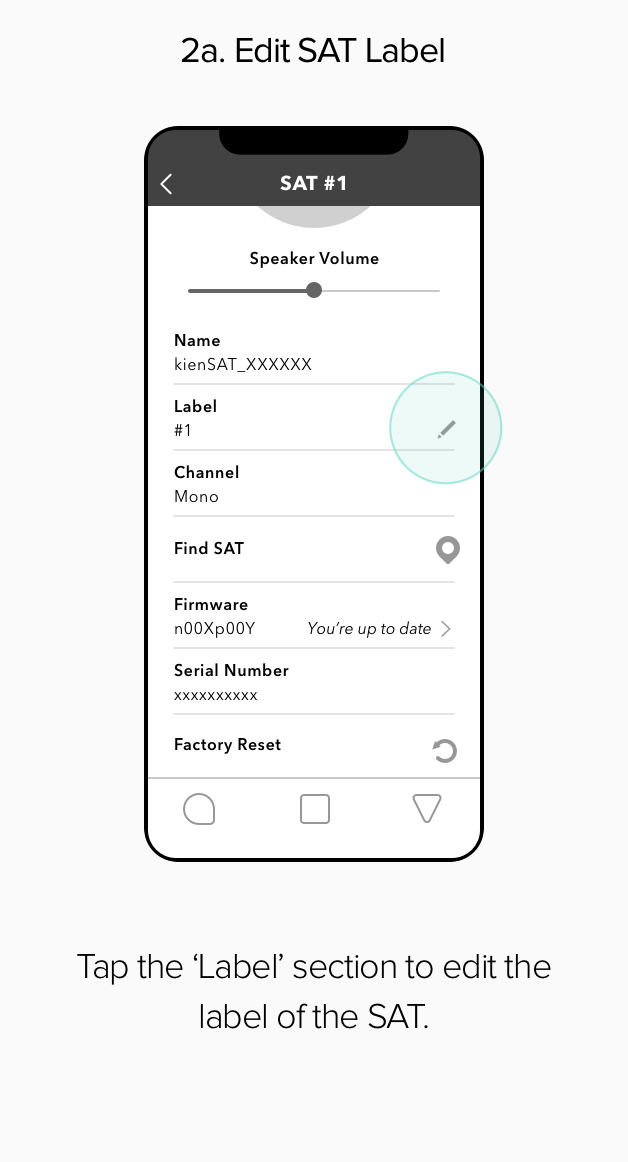

Configure Sat




To learn more about running firmware updates go to ‘
Firmware Update’.
Changing the channel is only possible when one or more Follower SATs (Blue-Pink) are connected to a Leader SAT (Blue). See ‘Enable Stereo Sound’.
The settings of a connected Follower SAT are the same as the settings of a Leader SAT.
Changing the channel is only possible when one or more Follower SATs (Blue-Pink) are connected to a Leader SAT (Blue). See ‘Enable Stereo Sound’.
The settings of a connected Follower SAT are the same as the settings of a Leader SAT.
create sat group




Want to add more Follower SATs? Simply repeat step 1 to 4 for each SAT you’d like to add.
Follower SATs that are not paired with a Leader SAT or cannot reconnect to it blink pink and will go into Standby Mode within 15 minutes. See chapter ‘ Standby Mode’
Follower SATs that are not paired with a Leader SAT or cannot reconnect to it blink pink and will go into Standby Mode within 15 minutes. See chapter ‘ Standby Mode’
enable stereo sound




sat group Volume settings




firmware update




*SAT Group? Update the connected Follower SATs first and finish with the Leader SAT. Follow step 1 to 4 for each SAT.
STandby mode




If the charger is plugged, the SAT (Leader/Follower) stays in Standby Mode until you press the Power button again or pair to it with your device.
If the charger is not plugged, the SAT (Leader/Follower) powers off automatically after 15 minutes of Standby Mode.
If the charger is not plugged, the SAT (Leader/Follower) powers off automatically after 15 minutes of Standby Mode.

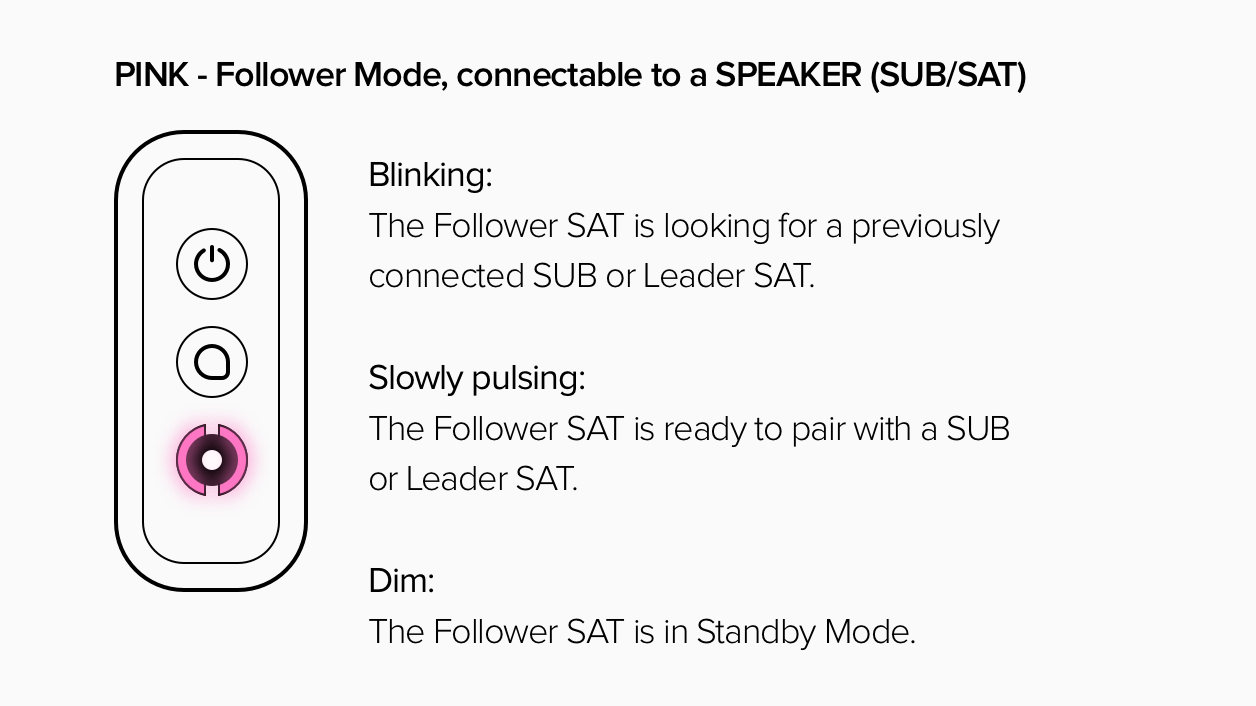

LED Indicator Legend
Below is an overview of the main colours and behaviours of the LED indicator.





GREEN/YELLOW/RED - Battery Status
Green: Full battery level.
Yellow: Medium battery level.
Red: Low battery level. It will flash red every 10 seconds. When the LED becomes solid red, the battery is critically low. Connect the SAT to the charger!
The battery level is indicated at two instances: - Shortly after initialization of the speaker when it is turned on. The blinking white is followed by the color that relates to the battery level (with green/yellow/red). - When the power supply unit is plugged in.
Yellow: Medium battery level.
Red: Low battery level. It will flash red every 10 seconds. When the LED becomes solid red, the battery is critically low. Connect the SAT to the charger!
The battery level is indicated at two instances: - Shortly after initialization of the speaker when it is turned on. The blinking white is followed by the color that relates to the battery level (with green/yellow/red). - When the power supply unit is plugged in.
SAT Specifications


Connect SUB to Wi-Fi




1. When the LED starts blinking yellow it can take up to 3 minutes for JB-DIRECT to appear. Want to learn more about JB-DIRECT, please head over to the FAQ.
2. Already clicked through the Welcome screens without having set up the SUB? Click ‘No, First Time’ on the SUB dashboard to see them again.
2. Already clicked through the Welcome screens without having set up the SUB? Click ‘No, First Time’ on the SUB dashboard to see them again.
Create SUB Group




Want to add more Follower SATs? Simply repeat step 1 to 4 for each SAT you’d like to add.
Follower SATs that are not paired with a SUB or cannot reconnect to it blink pink and will go into Standby Mode within 15 minutes. See chapter ‘Standby Mode’
Follower SATs that are not paired with a SUB or cannot reconnect to it blink pink and will go into Standby Mode within 15 minutes. See chapter ‘Standby Mode’
Controls & Inputs




Enable Stereo or Surround Sound




Changing the channel is only possible when two or more Follower SATs are grouped to the SUB.
Surround Sound channels become available when four or more Follower SATs have been grouped to the SUB.
Surround Sound channels become available when four or more Follower SATs have been grouped to the SUB.
Connect A/V Equipment




Change Network



Configure Connected Follower SAT




To learn more about running firmware updates go to
‘Firmware Update’.
Changing the channel is only possible when two or more Follower SATs are grouped to the Leader SAT. See ‘ Enable Stereo or Surround Sound’.
Changing the channel is only possible when two or more Follower SATs are grouped to the Leader SAT. See ‘ Enable Stereo or Surround Sound’.
SUB Group volume Settings




Firmware Update




*SUB Group? Update the connected Follower SATs first and finish with the SUB. Follow step 1 to 4 for each speaker.
The updated Follower SATs automatically reconnect to the SUB after the SUB has been updated.
The updated Follower SATs automatically reconnect to the SUB after the SUB has been updated.
STandby mode
Only SATs are able to go to Standby Mode in order to save battery life. The SUB can only power on or off.




If the charger is plugged, the SAT (Leader/Follower) stays in Standby Mode until you press the Power button again or pair to it with your device.
If the charger is not plugged, the SAT (Leader/Follower) powers off automatically after 15 minutes of Standby Mode.
If the charger is not plugged, the SAT (Leader/Follower) powers off automatically after 15 minutes of Standby Mode.
LED Indicator Legend
Below is an overview of the main colours and behaviours of the LED indicator.







GREEN/YELLOW/RED - Battery Status
Green: Full battery level.
Yellow: Medium battery level.
Red: Low battery level. It will flash red every 10 seconds. When the LED becomes solid red, the battery is critically low. Connect the SAT to the charger!
The battery level is indicated at two instances: - Shortly after initialization of the speaker when it is turned on. The blinking white is followed by the color that relates to the battery level (with green/yellow/red). - When the power supply unit is plugged in.
Yellow: Medium battery level.
Red: Low battery level. It will flash red every 10 seconds. When the LED becomes solid red, the battery is critically low. Connect the SAT to the charger!
The battery level is indicated at two instances: - Shortly after initialization of the speaker when it is turned on. The blinking white is followed by the color that relates to the battery level (with green/yellow/red). - When the power supply unit is plugged in.
SUB Specifications
